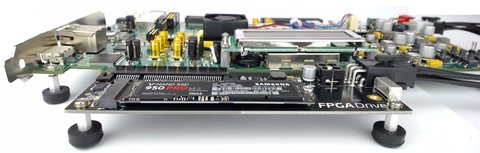

With the first prototypes on the way, it’s time to take a closer look at what exactly FPGA Drive is and how it can help you to develop new disruptive technologies with FPGAs and SSDs. Here’s what you need to know in 3 points:

1. FPGA Drive enables you to connect a high-speed Solid State Drive (SSD) to an FPGA
2. FPGA Drive delivers high-capacity, extreme-throughput non-volatile storage to FPGA development boards
3. FPGA Drive connects a 4-lane PCI Express bus between your FPGA and SSD

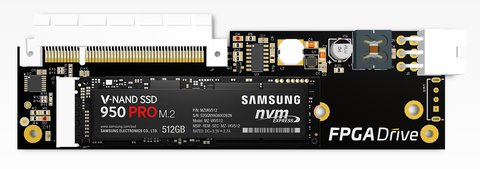

The 3D rendered image shows the following key features:

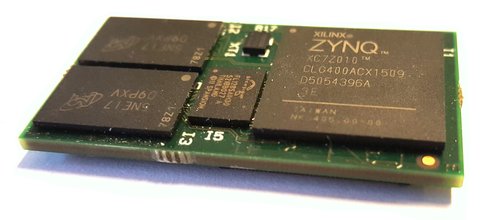

Almost a year ago I did a comparison of Zynq SoMs, or System-on-Modules, these handy little Zynq-based devices that speed up your product development by taking the risk out of your PCB design and often handing you a ton of working example code. Well there have been many more Zynq SoMs come onto the market since then, so another comparison is due, but today I just wanted to review one of them: ZynqBoard, the smallest Zynq SoM on the market today according to zynqboard.com. This new device measures only 42mm x 22mm! To get it so small it’s developers have stripped it down to only the essentials: Zynq, DDR3, flash memory, clock oscillator and expansion connectors.

Xilinx just released a video presenting the next-generation of All Programmable devices and dev environments. It’s a quick look at where technology is going and particularly where FPGAs are going to make their mark.

Of particular interest to me were the images of a Virtex Ultrascale PCI Express board at 2:45 in the video. This board appears to have both the PCIe gold-finger edge connector and a PCIe saddle-mount socket connector, so it could be used as either the PCIe end-point or the root complex - or maybe both at the same time. Most of Xilinx’s dev boards have the PCIe edge connector but as far as I know, the only FPGA dev board with a PCIe socket is the Mini-ITX from Avnet.

Rick Merritt wrote an interesting article on EETimes titled Red Hat Drives FPGAs, ARM Servers. It seems that Red Hat and the major FPGA vendors are going to get together in March to work out a standard software interface for FPGA accelerator boards. The success of high-level synthesis tools in recent years has re-ignited interest in FPGA-based hardware accelerators, as development times on FPGA hardware has seen massive reductions thanks to OpenCL and Vivado HLS, among others. Typically, these kinds of accelerators are PCI Express boards but the OS usually talks to them through a custom interface, which depends on the application and the algorithms being implemented on the FPGA. This obligates the software designers to know the hardware in detail, in order to code the drivers and applications to exploit the accelerators. So Red Hat, the open-source software company, is basically pushing for some abstraction to make the accelerators easier to code for. The idea is simple: design the accelerators with a standard interface and hide the hardware implementation details behind it.

Very excited to be showing off my new Samsung SSD 950 in the M.2 form factor. This tiny solid-state drive has a PCI Express Gen3 x 4-lane interface for a more direct connection to the CPU which enables a much higher throughput than a SATA interface. According to Samsung:

It outperforms SATA SSDs by over 4.5 times in sequential read and by over 2.5 times in sequential write, delivering the speeds of 2,500 MB/s and 1,500 MB/s respectively.

[Read More]

Since their invention, FPGAs have been burdened by a problem that has held them back from more widespread adoption: they’re too hard to program. Xilinx knows this, which is why they spent hundreds of millions of dollars developing the Vivado Design Suite and more importantly Vivado HLS (high-level synthesis) which enables high-performance hardware designs to be programmed in C/C++. Well a new company called QuickPlay has created their own solution to this problem. They claim to have created a development platform (including hardware and software) that enables developers to create FPGA based designs with almost no FPGA knowledge or experience. They’ve created a development environment with a high-level of abstraction, allowing FPGA designs to be developed in C/C++, while also supporting Xilinx and Altera FPGAs, and multiple board and IP vendors.

Tutorial Overview

This tutorial is the follow-up to Using AXI Ethernet Subsystem and GMII-to-RGMII in a Multi-port Ethernet design. In this part of the tutorial we will generate the bitstream, export the hardware description to the SDK and then test the echo server application on our hardware. The echo server application runs on lwIP (light-weight IP), the open source TCP/IP stack for embedded systems. Our hardware platform is the Avnet ZedBoard combined with the Ethernet FMC.

I recently got myself a PicoZed 7Z030 SoM (system-on-module) so that I could start developing more resource intensive applications for the Ethernet FMC, such as network tapping and network latency measurement. Why would I use a SoM for this? Checkout my comparison of Zynq SoMs to learn more about the benefits of SoMs in product development.

It’s worth mentioning this arrived the day after I ordered it. Here are some photos I took while unboxing:

When designing a network tap on an FPGA, the logical place to start is the pass-through between two Ethernet ports. In this article, I’ll discuss a convenient way to connect two Ethernet ports at the PHY-MAC interface, which will form the basis of a network tap. The pass-through will be designed in Vivado for the ZedBoard combined with an Ethernet FMC. In future articles, I’ll discuss other aspects of an FPGA network tap design, including monitor ports, packet filtering, and opportunities for hardware acceleration in the FPGA.

Tutorial Overview

In this two-part tutorial, we’re going to create a multi-port Ethernet design in Vivado 2015.4 using both the GMII-to-RGMII and AXI Ethernet Subsystem IP cores. We’ll then test the design on hardware by running an echo server on lwIP. Our target hardware will be the ZedBoard armed with an Ethernet FMC, which adds 4 additional Gigabit Ethernet ports to our platform. Ports 0 to 2 of the Ethernet FMC will connect to separate AXI Ethernet Subsystem IPs which will be configured in DMA mode. Port 3 of the Ethernet FMC will connect to GEM1 of the Zynq PS through the GMII-to-RGMII IP, while the on-board Ethernet port of the ZedBoard will connect to GEM0.
